We will no longer sell Xforce :
ALL AMPS ARE FOR 10+ METERS (HAMS) please Read are Disclaimer..The information found on this page is for educational purposes only...we do not sell this product.
20012 BASE
Click Image To View Larger

20012 BASE

Transistors 2 x 2SC2879 Dimensions H 4 1/4' x L 7' x W 4 1/4' Amp Draw (maximum) 4 (AC) Class B SSB Delay yes Pre-amp yes Driver Required N/A Power Output (RMS)200 Watts Power Output (PEP)450 Watts Driven Power (RMS)N/A Driven Power (PEP)N/ 115V AC

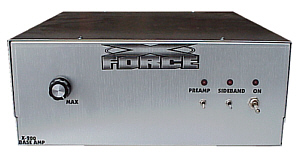

X-200
Click Image To View Larger

X-200

Pills 1 x 2SC2290/2 x 2SC2879 Dimensions H 5 3/4' x L 14 1/2' x W 13 1/2' Amp Draw (maximum) 5 (AC) Class C SSB Delay yes Pre-amp yes Driver Required N/A Power Output (RMS)250 Watts Power Output (PEP)500 Watts Driven Power (RMS)N/A Driven Power (PEP)N/A 115V AC

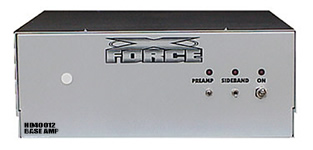

40012 HD
Click Image To View Larger

40012 HD

Transistors 4 x 2SC2879 Dimensions H 5 3/4' x L 14 1/2' x W 13 1/2' Amp Draw (maximum) 11 (AC) Class B SSB Delay yes Pre-amp yes Driver Required X-80 Base (optional Power Output (RMS)400 Watts Power Output (PEP)800 Watts Driven Power (RMS)600 Watts Driven Power (PEP)1200 Watts 115V AC




XM400

Pills 1 x SC2879 X 4 x 2SC2879 Dimensions H 5 3/4' x L 14 1/2' x W 13 1/2 Amp Draw (maximum) 11 (AC) Class c SSB Delay yes Pre-amp yes Driver Required N/A Power Output (RMS)400 Watts Power Output (PEP)1100 Watts Driven Power (RMS)N/A Driven Power (PEP)N/A

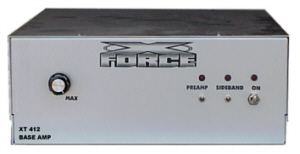

XT-40012 BASE
Click Image To View Larger

XT-40012 BASE

Pills 2 x 2SC2290/4 x 2SC2879 Dimensions H 5 3/4' x L 14 1/2' x W 13 1/2 Amp Draw (maximum) 11 (AC) Class B SSB Delay yes Pre-amp yes Driver Required N/A Power Output (RMS)500 Watts Power Output (PEP)1200 Watts Driven Power (RMS)N/A Driven Power (PEP)N/A 115V AC


60012 BASE
Click Image To View Larger

60012 BASE

Transistors 6 x 2SC2879 Dimensions H 5 3/4' x L 14 1/2' x W 13 1/2 Amp Draw (maximum) 15 (AC) Class B SSB Delay yes Pre-amp yes Driver Required X-80 Base (optional) Power Output (RMS)600 Watts Power Output (PEP)1000 Watts Driven Power (RMS)750 Watts Driven Power (PEP)1600 Watts 115V AC input




X600 Base

Transistors 2 SC2290 x 6x2sc2879 Dimensions H 5 3/4' x L 14 1/2' x W 21' Amp Draw (maximum) 20 (AC) Class c SSB Delay yes Pre-amp yes Power Output (RMS)550 Watts Power Output (PEP)1400 Watts




800hd Base

Transistors 8 x 2SC2879 Dimensions H 5 3/4' x L 14 1/2' x W 21' Amp Draw (maximum) 40 (AC) Class c SSB Delay yes Pre-amp yes Driver Required X-80 Base Amp(optional) Power Output with driver(RMS)800 Watts Power Output with driver(PEP)2200 Watts




XT800

Pre>Transistors 2 x 2sc2879 Driving 8 x 2sc2879 Dimensions H 5 3/4' x L 14 1/2' x W 21' Amp Draw (maximum) 25 (AC) Class c SSB Delay yes Pre-amp yes Power Output (RMS)800 Watts Power Output (PEP)2400 Watts Unit shown is for a standard 110 outlet.




1.0kw Base

Transistors 10x 2SC2879 Dimensions H 5 3/4' x L 14 1/2' x W 21' Amp Draw (maximum) 30 (AC) Class c SSB Delay yes Pre-amp yes Driver Required X-80 Base Amp Or 20012 Base Amo(optional) Power Output with driver(RMS)1000Watts Power Output with driver(PEP)2800 Watts
